Title	Crickets
Description	A Swarm Of Electronic Crickets
Keywords	cooper baker, cooper, baker, cooperbaker, crickets, microcontroller, assembly, sound, art, sound art, soundart, gallery, installation, artwork, chirp, chirps, insect, insects, artwork, sx, chip, music

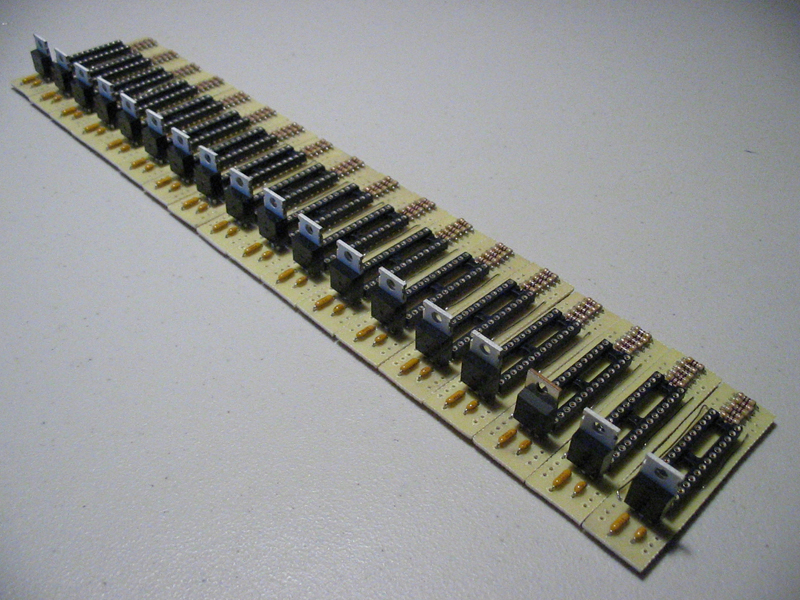

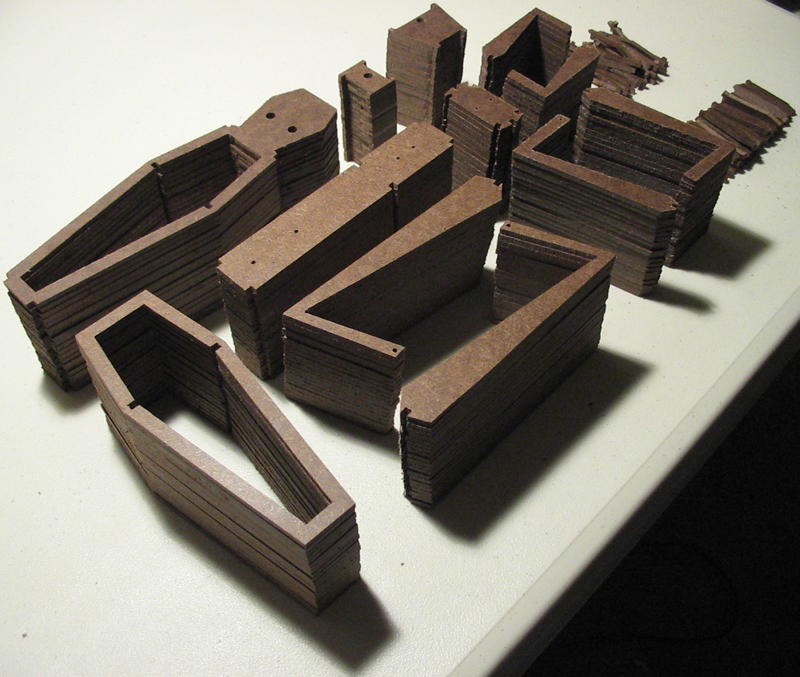

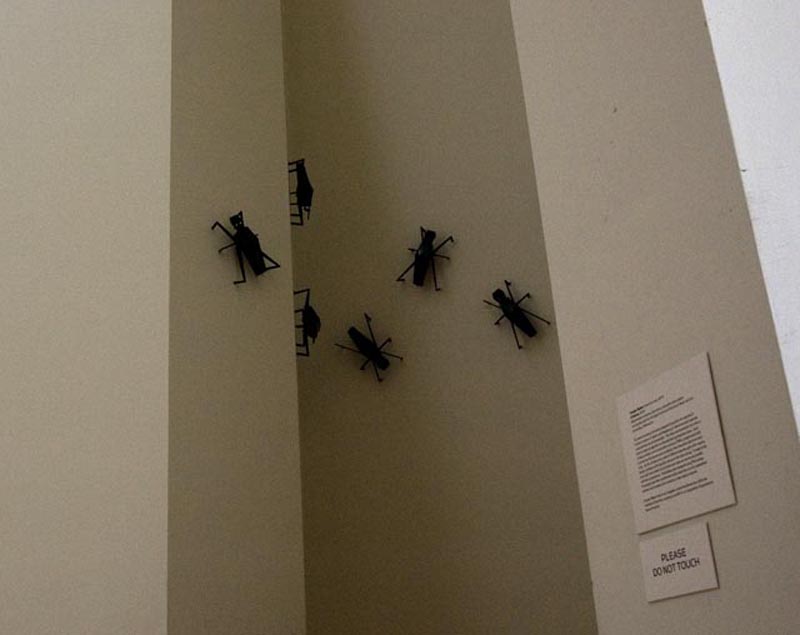

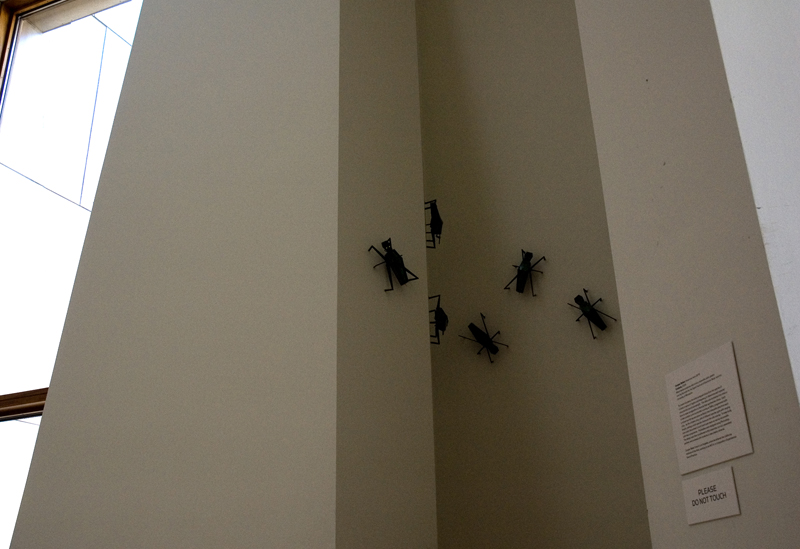

Content	<?php photo( 'crickets.jpg' ); ?> <br> <br> <?php ruler( 'About' ); ?> Chirps from ten species of crickets were analyzed in terms of rhythm and dominant frequency to determine characteristics of constituent wavelets from each species' chirp. This data was translated into assembly language instructions to make an algorithm that synthesizes chirps. Each cricket contains a microcontroller running at 4 MHz, programmed with a virtual 2-bit square wave oscillator that interprets data from each chirp. As the crickets chirp, calls of different species cycle with varying length, making a multi-species chorus as the calls overlap. The negligible differences between the microcontrollers' on-board clocks were exploited to cause relative phasing amongst the chirps. <br> <br> To keep body size small the printed circuit board was made as narrow as possible with few components. The crickets are made of masonite, monokote, paint, and electronic components. <br> <br> Crickets has been installed at the Weisman Art Gallery in Minneapolis, REDCAT in Los Angeles, and at California Institute of the Arts. <br> <br> <?php ruler( 'Photos' ); ?> <?php gallery(); ?> <?php ruler( 'Spectrograms' ); ?> <?php image( 'spectrograms.png '); ?> <?php ruler( 'Code' ); ?> <?php code( 'crickets.asm' ); ?>
	1 : 1

crickets.asm
gallery
    images
        build boards done.jpg
        build parts.jpg
        build protoboard.jpg
        build stuffed boards.jpg
        build sx board.jpg
        build trace.jpg
        build trace b.jpg
        redcat men a.jpg
        redcat men install.jpg
        redcat men seven.jpg
        redcat men three.jpg
        redcat single cricket.jpg
        redcat women six.jpg
        redcat women six b.jpg
        wavecave eleven.jpg
        wavecave eleven b.jpg
        wavecave wall.jpg
        weisman alcove.jpg
        weisman chimney.jpg
        weisman closeup.jpg
        weisman closeups.jpg
        weisman didactic.jpg
        weisman didactic ii.jpg
        weisman floor.jpg
        weisman pano.jpg
        weisman patrons.jpg
        weisman sign.jpg
    thumbs
        build boards done.jpg
        build parts.jpg
        build protoboard.jpg
        build stuffed boards.jpg
        build sx board.jpg
        build trace.jpg
        build trace b.jpg
        redcat men a.jpg
        redcat men install.jpg
        redcat men seven.jpg
        redcat men three.jpg
        redcat single cricket.jpg
        redcat women six.jpg
        redcat women six b.jpg
        wavecave eleven.jpg
        wavecave eleven b.jpg
        wavecave wall.jpg
        weisman alcove.jpg
        weisman chimney.jpg
        weisman closeup.jpg
        weisman closeups.jpg
        weisman didactic.jpg
        weisman didactic ii.jpg
        weisman floor.jpg
        weisman pano.jpg
        weisman patrons.jpg
        weisman sign.jpg
